Bike Frameset

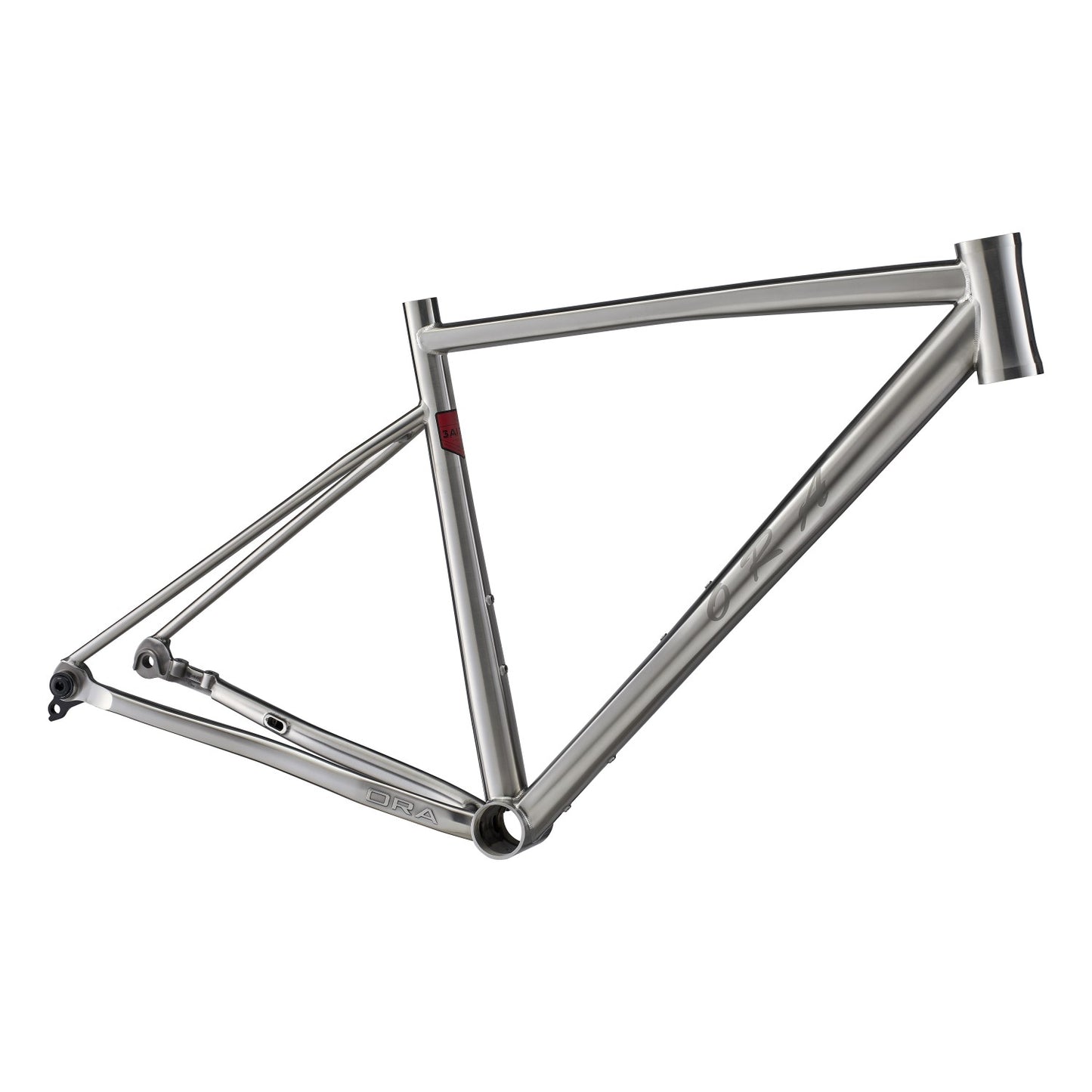

Titanium Cyclo Cross Bike Frame 25-CX302
Titanium Cyclo Cross Bike Frame 25-CX302
SKU:25-CX302
Couldn't load pickup availability
Specification
• 700*40C Gravel Bike Frame
• 3Al 2.5V Titanium Butted Heat Treatment Tubes :
T/T OD40*1.2/0.7/0.9 Taper To 31.8mm T41
D/T OD47*1.2/0.7/0.9mm D41
S/T OD31.8*1.0/0.75/1.0mm
S/S OD16*0.9mm Taper To 12.7mm S01
C/S OD22.2*1.1mm With 3D Printing Yoke
• Head Tube OD55mm/ID52mm
• BB Shell T47
• UDH Dropout With Flat Mount B09BT2262A
• Internal Cable Routing
• Custom Sizing
• 3Al 2.5V Titanium Butted Heat Treatment Tubes :
T/T OD40*1.2/0.7/0.9 Taper To 31.8mm T41
D/T OD47*1.2/0.7/0.9mm D41
S/T OD31.8*1.0/0.75/1.0mm
S/S OD16*0.9mm Taper To 12.7mm S01
C/S OD22.2*1.1mm With 3D Printing Yoke
• Head Tube OD55mm/ID52mm
• BB Shell T47
• UDH Dropout With Flat Mount B09BT2262A
• Internal Cable Routing
• Custom Sizing
Material
3Al 2.5v Titanium
Customization
Yes
